A complete camper van's worth of electrics based on the most popular layouts for camper van wiring in 2025. We've used our 13 years experience to put together some highly popular starter packs containing a complete set of wiring to go from a panel van to a camper van in lots of layouts and component combinations. Explore this kit through the features and details below. Each kit covers mains hook up, smart alternator DC to DC charging, a battery, a lighting setup and more.
A high-performance, electrical kit with pre-terminated high-current cables and flexible wiring for in van installation.
A flexible wiring kit for installers to cut-to-length, for those who want complete control over their campervan’s electrical setup.
A compact and powerful AGM leisure battery designed for efficient energy storage in campervans.
Charge your leisure battery from the engine whilst driving
What is a 'Components Only' starter pack?
A components only starter pack is a pre-determined set of cables and components based on the most popular layouts and setups from our thousands of custom built camper kits over the past 10+ years. Available off the shelf with detailed instructions and the same aftercare you'd expect from a custom kit.
Bespoke Installation:
With comprehensive fitting instructions, installing your campervan’s electrical system is straightforward and fully customisable. The high current cables for the DCDC charger and any other cables (10mm² and above) are pre-cut and terminated, avoiding the expense and hassle of buying hydraulic crimpers. The lower current DC and AC cables are supplied in lengths as detailed above, so you can cut and crimp them in-situ for total customisation and a millimetre-perfect fit. Really useful if you're not 100% sure on every last detail of the layout yet.

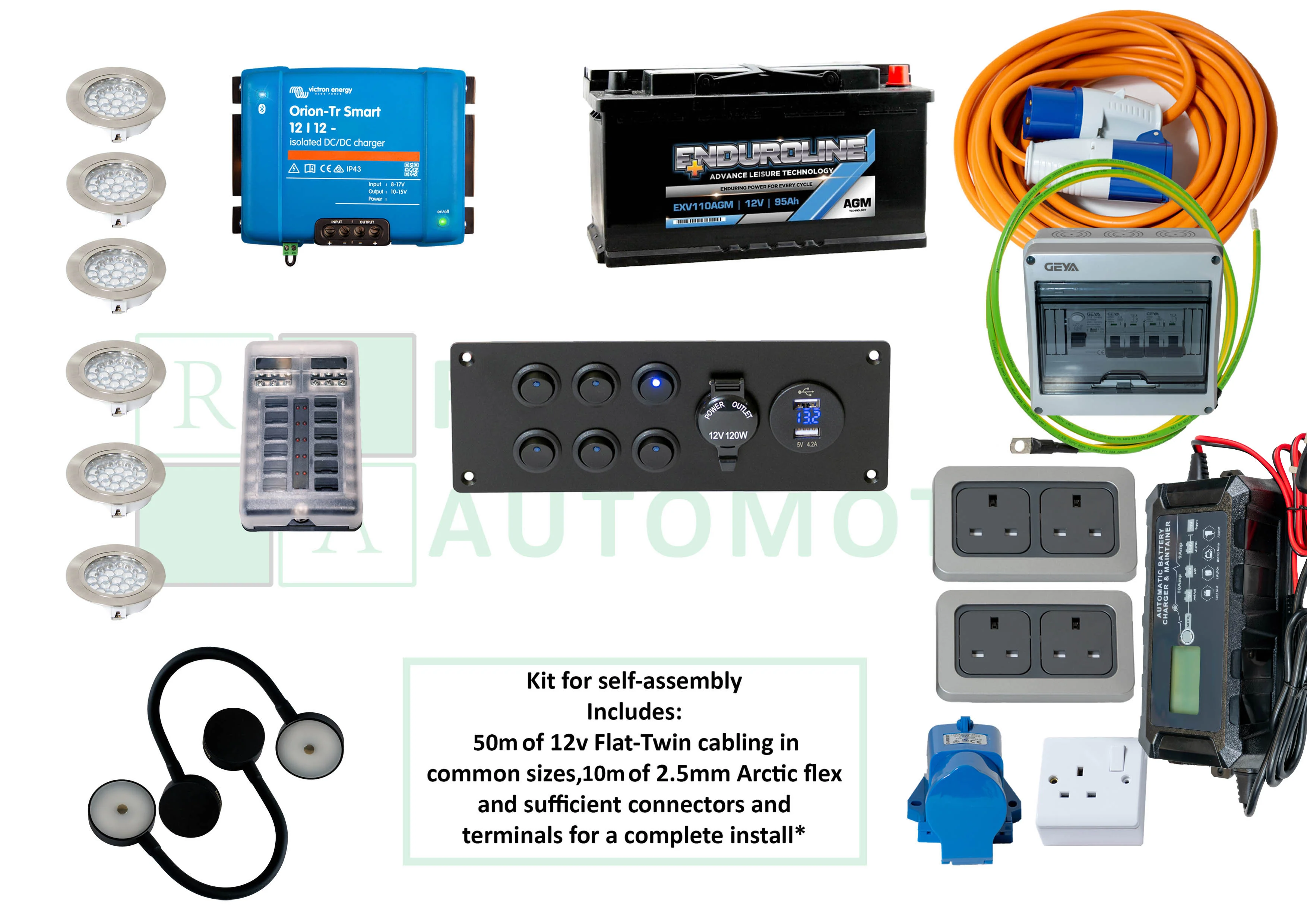

| Component | Description |
|---|---|
| Victron Orion 18A x 1 | Charge from your alternator whilst driving |
| 6-switch control panel x 1 | Control switched 12V appliances |
| 50M Cable kit x 1 | All flat twins, 17M 1.0mm2, 17M 1.5mm2, 10M 2.5mm2, 6M Control panel cable |
| 12-way fuse box x 1 | Provides 12V fuse protection with common negative too |
| 2-way consumer unit x 1 | Provides mains protection and circuit breakers |
| Covered Mains Inlet x 1 | Plug-in point |
| Double C-line socket and surround x 2 | Power outlets |
| 10A Mains battery charger x 1 | Charge your leisure battery whilst hooked up |
| 10M Mains hook up lead x 1 | Plugin between van and site |
| Arctic flex 2.5mm2 blue cable x 1 | 10m of Mains cabling |
| Black Dimmable LED reading light with USB x 2 | Touch Dim/on/off with flexible neck |
| LED light (Warm White) x 6 | Round LED down lights |
| 95Ah AGM leisure battery x 1 | Simple Energy store, provides power when off campsites |
| Component | Dimensions (LxWxH) |
|---|---|
| Victron Orion 18A | 125mm x 190mm x 70mm |
| 6-switch control panel | 215mm x 80mm x 100mm |
| 12-way fuse box | 140mm x 95mm x 40mm |
| 2-way consumer unit | 175mm x 185mm x 100mm |
| LED light (Warm White) | 65mm diameter |
| 95Ah AGM leisure battery | 354mm x 175mm x 190mm |
Technical Notes:
Tailored for Your Chosen Layout:
Choose from one of the pre-configured layouts in the images above, or if you'd prefer, please select ""other"" and our team will reach out to you to discuss your preferred layout before we start making anything (some changes may incur additional charges).
* Solar Yields are based on our data from London based systems. Summer yields are averages per W from March-September, Winter yields are averages per W and are taken from November to January
** Battery power is calculated based on the acceptable depth of discharge for this battery. The calculation is then Battery capacity divided by Daily discharge (67.7Ah for electric cooking and 28.6Ah for gas cooking) minus estimated solar contributions.
"Original: $1,110.19
-65%$1,110.19
$388.57
"
