A complete camper van's worth of electrics based on the most popular layouts for camper van wiring in 2025. We've used our 13 years experience to put together some highly popular starter packs containing a complete set of wiring to go from a panel van to a camper van in lots of layouts and component combinations. Explore this kit through the features and details below. Each kit covers mains hook up, smart alternator DC to DC charging, a battery, a lighting setup and more.
A fully tailored, easy-to-install electrical kit for powering your camper or race van with both 12V and 240V systems.
Each kit is made to match your camper’s layout.
A compact and powerful AGM leisure battery designed for efficient energy storage in campervans.
Charge your leisure battery from the engine whilst driving
A lightweight, low-profile solar panel kit for off-grid battery charging, perfect for pop tops
Easy Installation:
With labelled wires and comprehensive fitting instructions, installing your campervan’s electrical system is straightforward and hassle-free.
| Component | Description |
|---|---|
| Custom 12V wiring looms x 1 | Custom made wiring looms for appliances |
| Victron Orion 18A x 1 | Charge from your alternator whilst driving |
| 6-switch control panel x 1 | Control switched 12V appliances |
| 6-way fuse box x 1 | Provides 12V fuse protection with common negative too |
| Bus bars and isolator switch x 1 | Gives more battery connection points for a neater install |
| 2-way consumer unit x 1 | Provides mains protection and circuit breakers |
| Covered Mains Inlet x 1 | Plug-in point |
| Double C-line socket and surround x 1 | Power outlets |
| 10A Mains battery charger x 1 | Charge your leisure battery whilst hooked up |
| 10M Mains hook up lead x 1 | Plugin between van and site |
| Black Dimmable LED reading light with USB x 1 | Touch Dim/on/off with flexible neck |
| LED light (Warm White) x 4 | Round LED down lights |
| 95Ah AGM leisure battery x 1 | Simple Energy store, provides power when off campsites |
| 15A MPPT x 1 | Victron Smartsolar MPPT, converts solar power to battery charge |
| 150W Flexible Solar panel x 1 | Charge your leisure battery from the sun |
| MPPT wiring kit x 1 | Cables to join your Solar panel to your MPPT controller |
| Component | Dimensions (LxWxH) |
|---|---|
| Victron Orion 18A | 125mm x 190mm x 70mm |
| 6-switch control panel | 215mm x 80mm x 100mm |
| 6-way fuse box | 100mm x 95mm x 40mm |
| 2-way consumer unit | 175mm x 185mm x 100mm |
| LED light (Warm White) | 65mm diameter |
| 95Ah AGM leisure battery | 354mm x 175mm x 190mm |
| 15A MPPT | 95mm x 110mm x 40mm |
| 150W Flexible Solar panel | 1225mm x 680mm x 4mm |
Technical Notes:
Tailored for Your Chosen Layout:

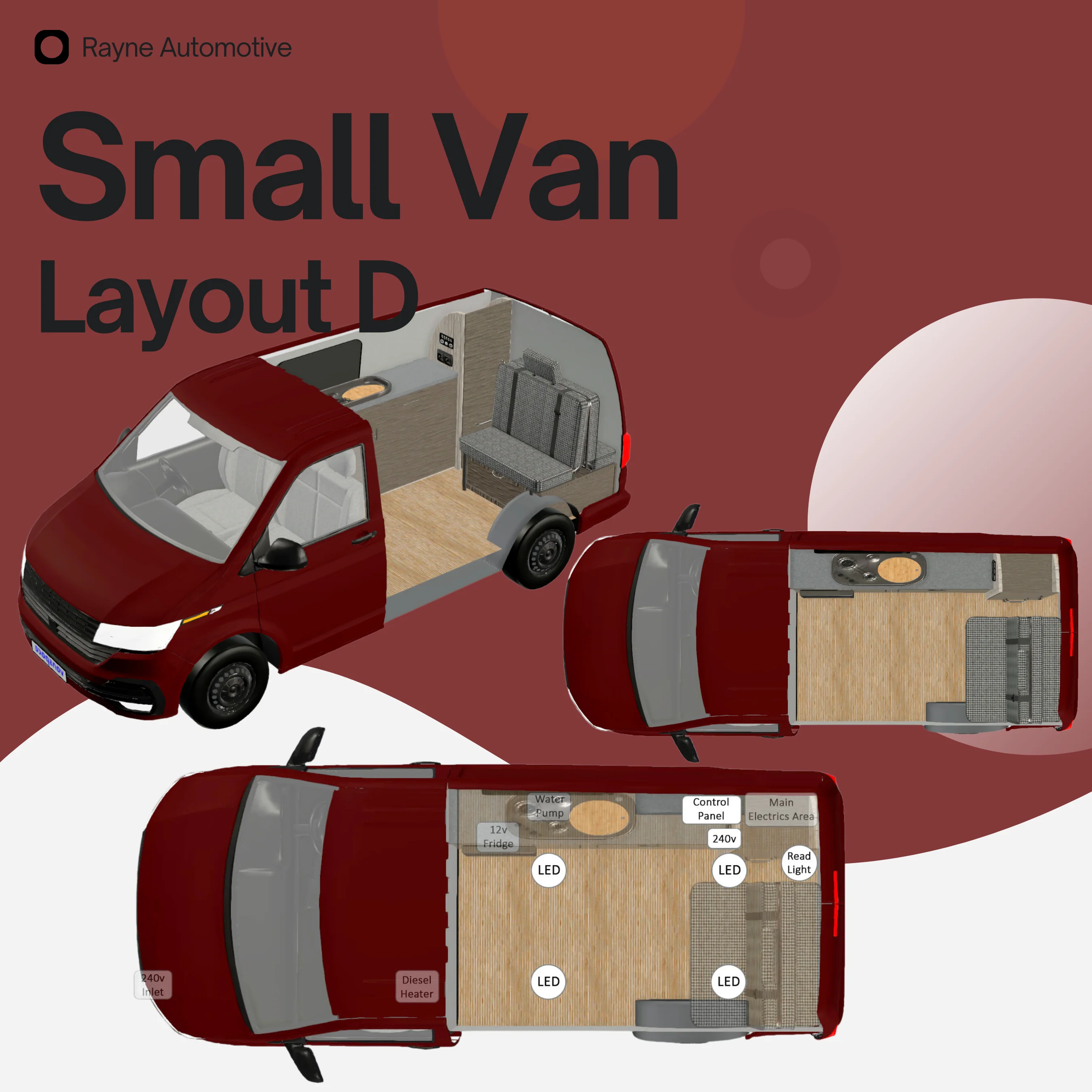

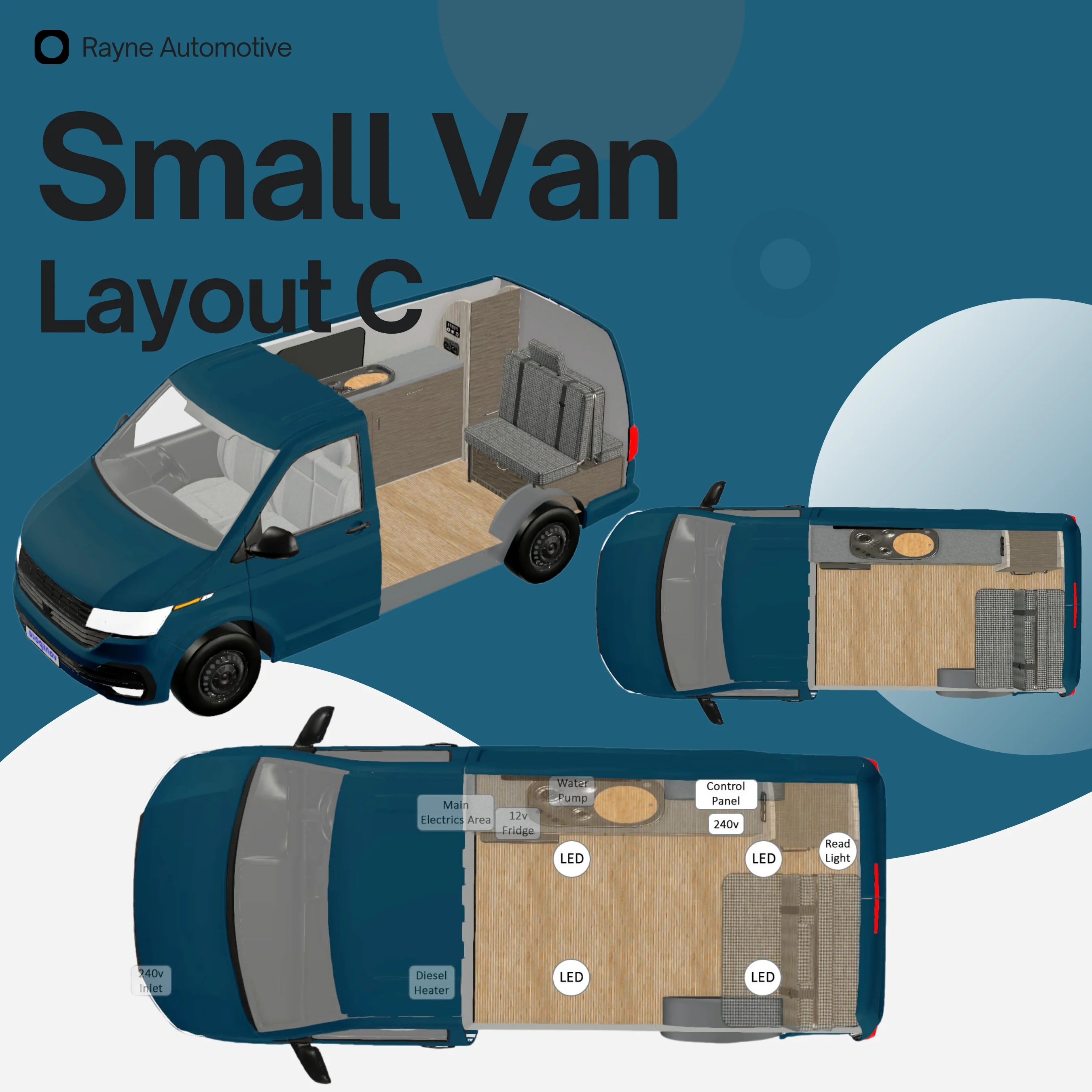

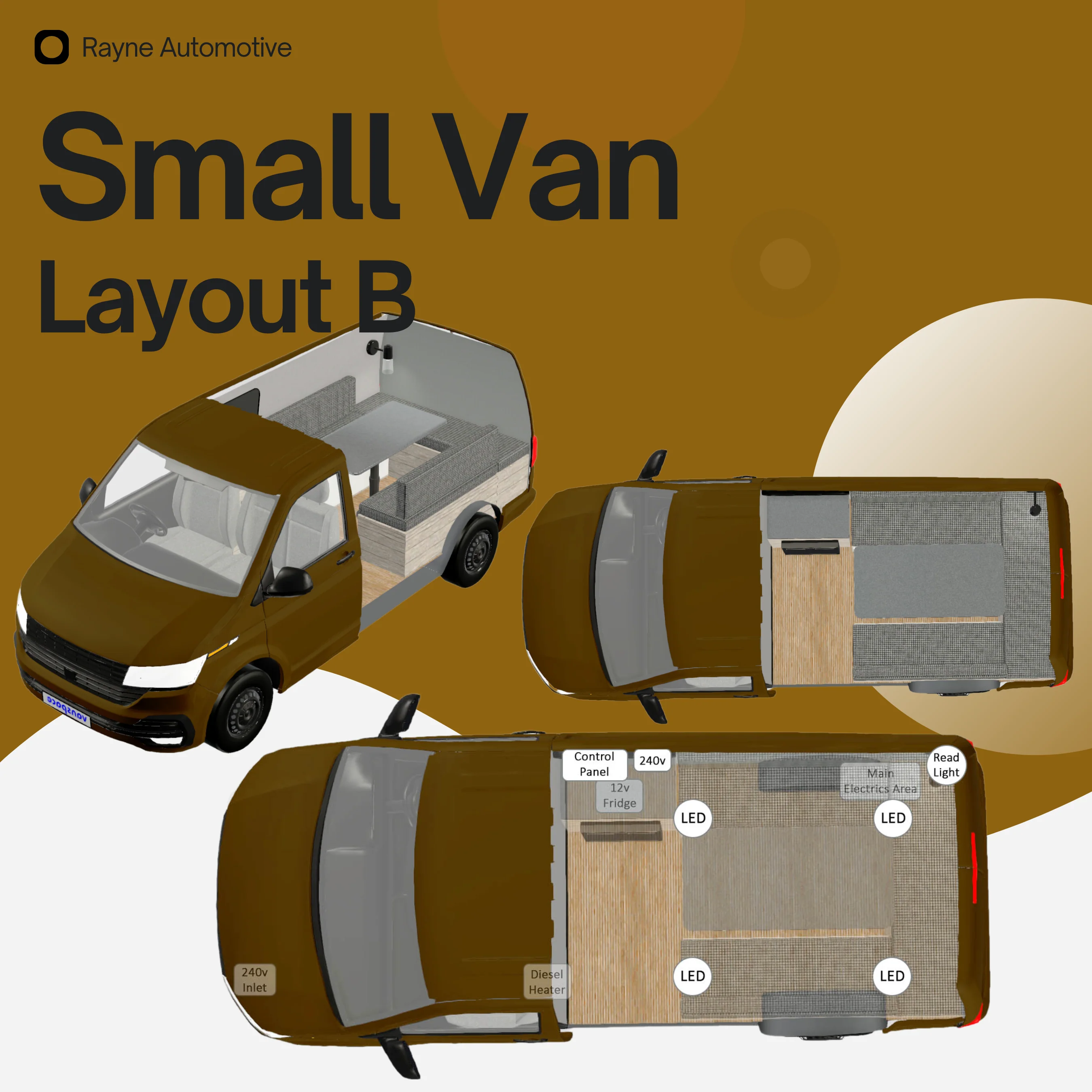

Choose from one of the pre-configured layouts in the images above, or if you'd prefer, please select ""other"" and our team will reach out to you to discuss your preferred layout before we start making anything (some changes may incur additional charges).
* Solar Yields are based on our data from London based systems. Summer yields are averages per W from March-September, Winter yields are averages per W and are taken from November to January
** Battery power is calculated based on the acceptable depth of discharge for this battery. The calculation is then Battery capacity divided by Daily discharge (67.7Ah for electric cooking and 28.6Ah for gas cooking) minus estimated solar contributions.
Original: $1,528.82
-65%$1,528.82
$535.09
"
