100A Battery Isolator Key/Switch Kit

100A Battery kill switch/isolator switch kit



A great addition to a system, usually used to isolate either the entire battery, one or several loads to help with maintenance and as a quick way of turning everything off when leaving the van parked up.



There are several different locations to add the switch which will give different functionality.



Rated for 100A continuous load and peaks of up to 500A. Ideal for most systems, except those with larger inverters, then we would recommend a 200A or a 550A isolator/battery switch.



Has 2 x M10 terminal on the back for connecting.

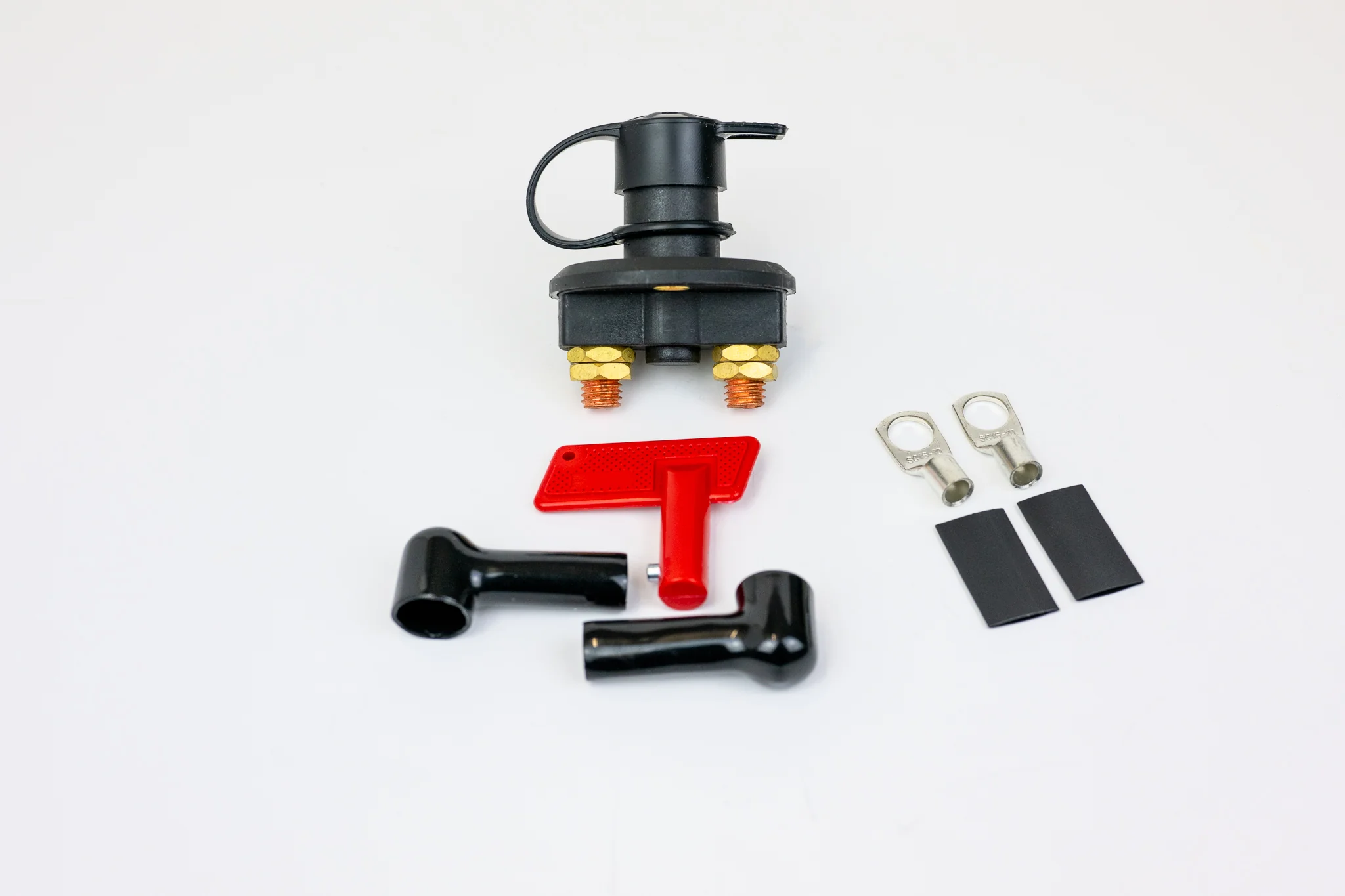

Kit contents

1 x 100A Isolator switch

2 x M10 by 16mm2 ring terminals

2 x 30mm x 10mm heatshrink lengths

2 x terminal cap boot
