Smart Battery Monitor Victron BMV-712 System

BMV 712 Smart battery monitor

Maximise your off-grid potential and keep an eye on your batteries.

• Programmable internal relay with visual or audible alarms.
• See time until charged/discharged and current charge rates.
• Can be used to monitor either the battery bank or individual components power consumption.
• Programming, real-time data and historical display options.

BMV description

Battery voltage, current, power, ampere-hours consumption and state of charge.

Remaining time at the current rate of discharge.

Programmable visual and audible alarm.

Programmable relay, to turn off noncritical loads or run a generator when needed.

500A shunt and quick connection kit.

Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health.

Measures current in 0.01A increments.

Additional input for a second battery, midpoint monitoring or temperature.

Highly efficient with 0.7Ah/month power consumption.

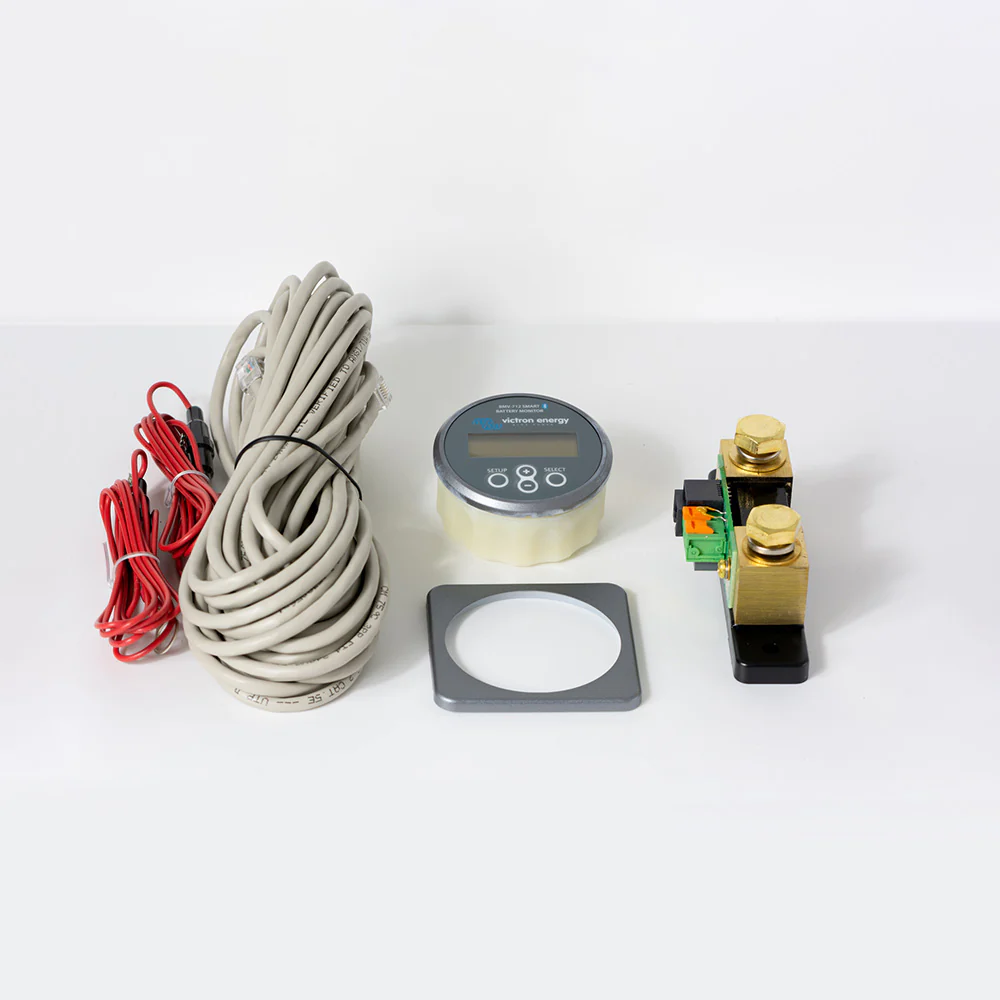

Kit contents

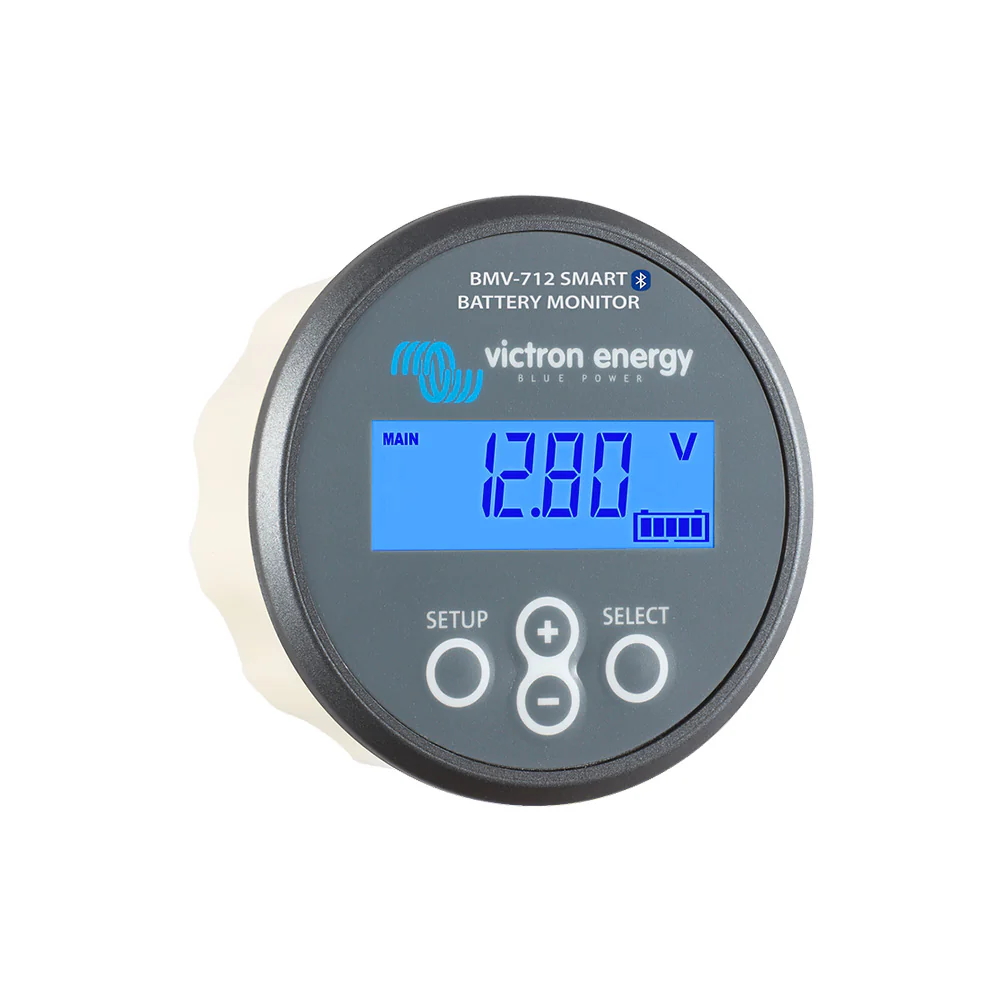

· 1 x Victron BMV-712 display screen
· 1 x 10M RJ12 Cable (shunt to display screen)
· 1 x 2M Live battery cable with fuse (leisure battery plus to shunt)
· 1 x 500A 5mV Shunt with quick connect PCB.
